您现在所在位置:首页>产品中心>10G抓包硬件
产品名称:ProfiShark 10G
产品编号:
产品名称: ProfiShark 10G
规     格:
产品备注:
  详细说明:

ProfiShark 10G是一种基于fpg的抓包硬件,usb3.0接口,支持10Gbps线速抓包 。



官网链接:http://www.profitap.com/profishark-10g/

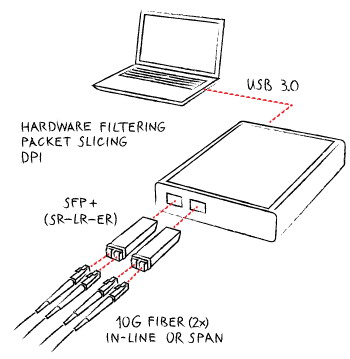

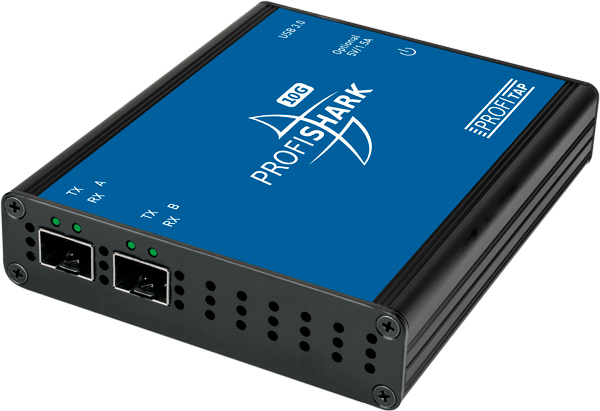

The ProfiShark 10G is a portable fiber aggregation TAP and troubleshooter. Built on the successful FPGA-based design of the ProfiShark series, the ProfiShark 10G network troubleshooter provides visibility into 10G fiber optic networks, directly to a USB 3.0 connection.

Thanks to the ProfiShark series’ signature compact design, the ProfiShark 10G can be easily transported on the field. Traffic capture and troubleshooting can be done with a laptop, or any computer with a USB 3.0 port. The ProfiShark 10G accepts any SR, LR, and ER SFP+ modules, and can function in both in-line and SPAN mode.

The ProfiShark 10G captures packets of all sizes and types. It also provides a wide assortment of hardware filters, statistics, and configuration options, through the ProfiShark Manager.

ProfiShark Manager

ProfiShark Manager is an application designed specifically for the ProfiShark series, for use in parallel with a network analyzer (e.g. Wireshark, ClearSight, …).

Traffic statistics

Configurable counters for statistical network analysis and diagnostic, and QoS testing.

Port diagnostic and control

SFP modules status information, SPAN/In-line and loopback mode control.

Hardware filters

Configurable hardware filters and deep packet inspection (DPI).

Capture options

Packet slicing (128 bytes), high resolution timestamps (8 ns), CRC error transmission, CRC32 preservation.

Direct capture to disk

ProfiShark Manager provides a way for the direct capture of traffic to a pcapng (PCAP Next Generation) file.

Compatibility

  • Wireshark
  • ClearSight
  • OmniPeek
  • Packetyzer
  • OptiView
  • NetSpector
  • NetDecoder
  • Ethertest
  • And many more

Features

  • 10G fiber monitoring on USB 3.0
  • USB 3.0 powered, no adapter required
  • Hardware aggregation
  • SPAN and In-Line modes
  • Capture any type of frames
  • Hardware filtering, deep packet inspection
  • Packet slicing
  • 8 ns hardware timestamping for accurate latency testing
  • Customizable real time statistics
  • In-depth network port diagnostic
  • Low level error and bandwidth monitoring
  • Direct capture to disk
  • Invisible to the network
  • Lightweight and highly portable build
  • Quick setup and easy to use
